Gate driver circuits need an isolated floating bias supply to maintain the required turn on bias when the fet source rises to the input voltage. These simple devices are used to drive the gate of metal oxide field effect transistors mosfets while providing galvanic isolation between the gate and the control circuitry. For more information see the overview for mosfet and igbt gate drivers product page. Mosfet gate drive transformers international safety construction vde approved 3750vrms gate to drive winding test useful operating frequency from 20khz to 100khz mechanical schematics electrical specifications 25 c operating temperature 0 c to 70 c maximum ratings dielectric strength 1 3 2 6 drive gate 1 09 27 69 max 1 20 30 48 max.

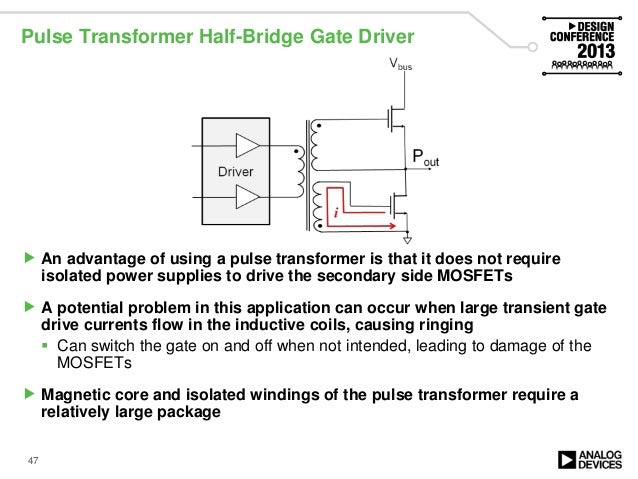

Here the gate driver differentially drives the primary of the pulse transformer. The two secondary windings drive each gate of a half bridge. I tried this app note from ir an 950 transformer isolated gate driver provides very large duty cycle ratios as well as this article high side mosfet gate drive. It has been optimized for both capacitive load drive and pulse transformer demagnetization.

The td300 is a three channel mosfet driver with pulse transformer driving capability. Gate drive transformers are used to deliver the controlling pulses while providing isolation between the mosfet and the controlling drive circuit. A gate drive transformer is optimized for transmitting rectangular electrical pulses with fast rise and fall times to activate or deactivate a switching device. The power of well implemented pulse transformers author fritz schlunder.

The duration of each plateau region corresponds with how long it takes for the mosfet to transition through the linear region. Gate drive transformers gts are a key component in many modern electronic systems. Gt s also allow the drive of several mosfets while utilizing a single control circuit. In switching power supplies a pulsed gate drive voltage turns the drain source current on and off operating the mosfet as a current switch.

Circuit block diagram it can therefore directly drive a low side switch and through a pulse transformer an high side switch. Procedure for ground referenced and high side gate drive circuits ac coupled and transformer isolated solutions are described in great details. There are plateaus on both the positive and the negative pulses because two mosfets are being driven by one single gate drive transformer. Despite various floating channel mosfet igbt driver ics being available a transformer coupled gate drive is still the better option to use for high power applications for many reasons.

Gate drive transformers are used to deliver the controlling gate voltage pulses between the drain and source of a mosfet while providing isolation between the mosfet and the controlling drive circuit.
