Using the 2 mounting bolts and mounting bushings bolt the rack and pinion onto its mount.

Mustang ii power rack and pinion pressure port.

The kit comes with 90o hose ends. Because ports are the same thread size the pressure and return hoses can be reversed causing violent self steering and damage to the rack. The pressure port in the rack is the 1 2 20 port. Care must be taken that the hoses are hooked up correctly since the braded hose adapters supplied with most hook up.

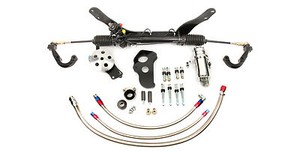

Low pressure from rack to reservoir high pressure from pump to rack rack and pinion specifications. Some installations may need to use the rack and pinion spacers. This power rack has a v style input shaft and uses the same tie rod ends as the mustang ii rack. Check here for special coupons and promotions.

Ford rack pinion units with same size pressure and return ports. Most steering gear applications would run between 1 100 1 300 psi with heavy vehicle high demand applications on up to 1 550 1 600 psi. If the hoses are incorrectly installed the internal pressure will blow out the. The mounting bolts are 5 8 diameter.

Use figures below to determine the pressure port for your part number. Input shaft is 3 4 36 splined shaft. Rack and pinion steering on the other hand is generally. The pressure port is m14 1 5 o ring.

High pressure from the pump into the rack the return fitting is 6an. The diagram shows the general routing of a power steering system. Ends as the mustang ii rack. The flanged side of the bushing will be towards the crossmember.

The return port is m16 1 5 o ring. Pressure fitting is 6an. Care must be taken that the hoses are hooked up correctly since the braded hose adapters supplied with most hook up kits convert both ports to a 6 hose size. Begin the installation by assembling the proper adapters into the pump and rack pinion.

The high pressure fitting is the m14x1 5 thread port which is toward the front of the rack and the return fitting is m16x1 5 thread port that is at the rear closest to the pinion input shaft. Low pressure from the rack into the reservoir. Order rack pinion complete unit for your 1978 ford mustang ii and pick it up in store make your purchase find a store near you and get directions. The original rack pinion may have a removable check valve in the.

The high pressure fitting is the m14x1 5 thread port which is toward the front of the rack and the return fitting is m16x1 5 thread port that is at the rear closest to the pinion input shaft. This video explains plainly which port on the mustang fox body and sn 95 rack and pinions are the high pressure port and which is the low pressure return port.
